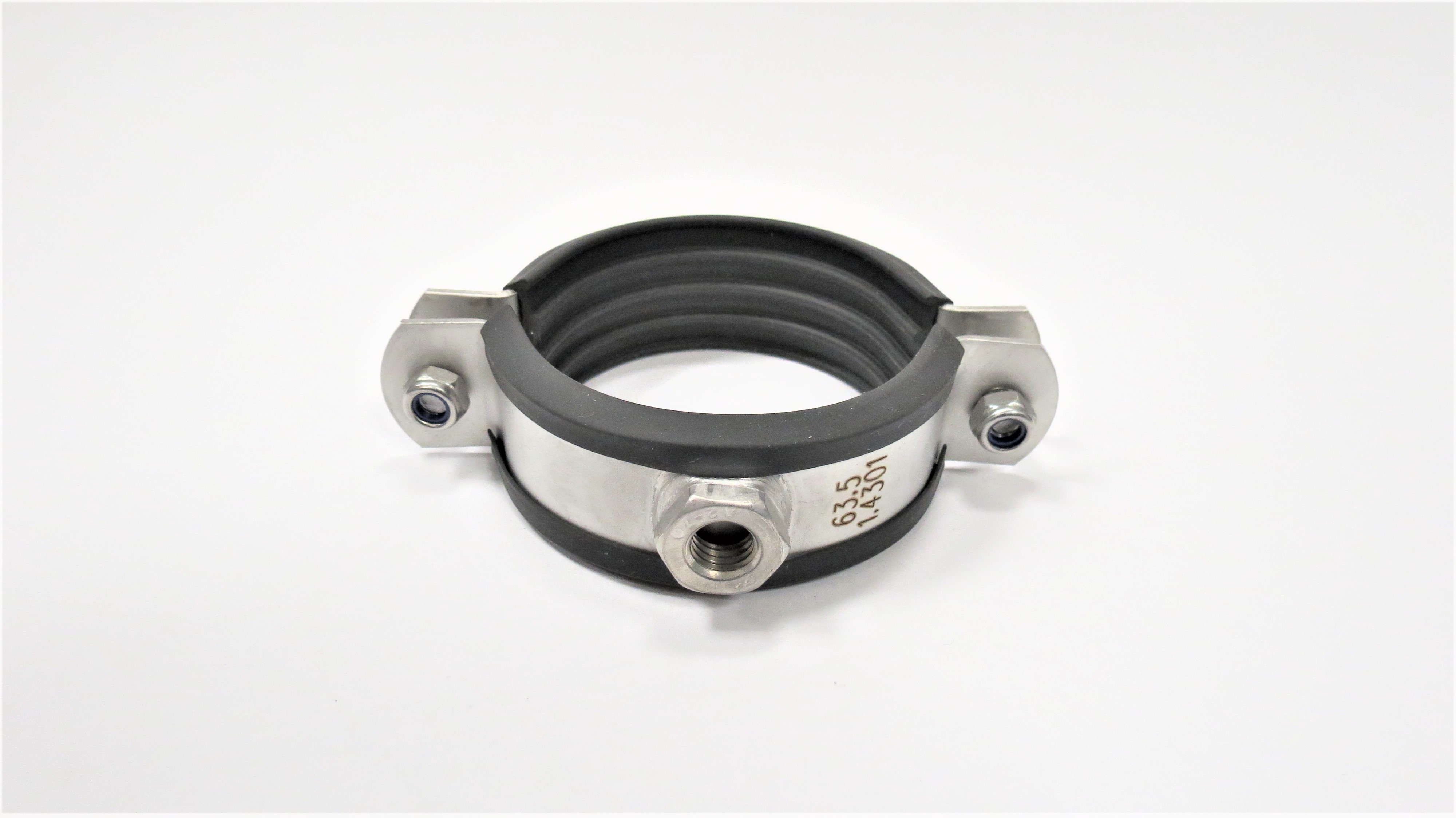

Clamps for pipes with nut and with rubber insert

Z nakrętką

Clamps made of stainless steel AISI 304, EN 1.4301, (other grades on request).

Clamps are screwed with DIN933 screws and DIN985 self-locking nuts.

Attention!

It is possible to use other nuts and flat bars than those listed in the table.

Sizes:

Int. (mm) Flat bar Nut size (M)
8 20x2 8
10 20x2 8
12 20x2 8
13,5 20x2 8
16 20x2 8
17,2 20x2 8
18 20x2 8
20 20x2 8
21,3 20x2 8
22 20x2 8
25 20x2 8
26,9 20x2 8
28 20x2 8
30 20x2 8
32 20x2 8
33,7 20x2 8
34 20x2 8
38 20x2 8
40 20x2 8
42,4 20x2 8
48,3 25x2 8
50 25x2 8
51 25x2 8
52 25x2 8
54 25x2 8
60,3 25x2 10
63,5 25x2 10
70 25x2 10
75 25x2 10
76,1 25x2 10
80 25x2 10
85 25x2 10
88,9 25x2 10
101,6 30x2,5 10
104 30x2,5 10
108 30x2,5 10
110 30x2,5 10
114,3 30x2,5 10
129 30x2,5 10
139,7 30x2,5 10
154 30x3 12
160 30x3 12
168,3 30x3 12
200 30x4 16
204 30x4 16
219,1 30x4 16
